جک بتن شکن تمام اتوماتیک با موتور Servotronic

Fully Automatic-Servotronic Compression Machine with LVDT

استاندارد: ASTM C39, BS 1610, ISIRI 1608-3

General Discriptions Download Manual

The technical specification of this device is same as Fully Automatic-Servotronic Compression Machine. The only difference is this device has LVDT sensor to calculate of deformation rate of under load sample.

More Information

Technical Specifications
Accessories

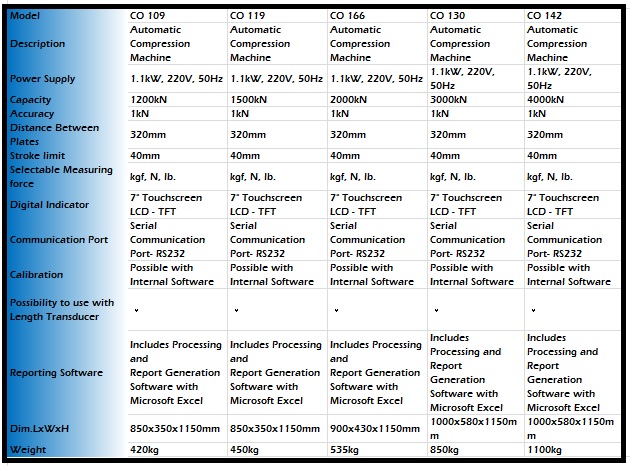

Technical Specifications:

· Capacity range: 1200 kN – 4000 kN

· Uniform adjustable loading rate (kg/s)

· 2x16 in LCD backlight indicator

· 600 bar. Pressure transmitter

· Oil level indicator.

· Ability to save dimension of sample and calculate the compression strength

· Automatic overload detection

· Power Supply: 750 W, 220V, 1hp, 1 phase

· Limit switch (40 mm stroke vertical limit)

· RS232 serial port to communicate with computer

· Ability to choose units: N, lbf, kgf

· 60 HRC hardened plates.

· Software calibration ability

· Ability to Save up to 200 tests data to internal memory

· LVDT sensor to determination of strain and plot stress-strain graph in PC.

· Instant concrete elasticity module determination
