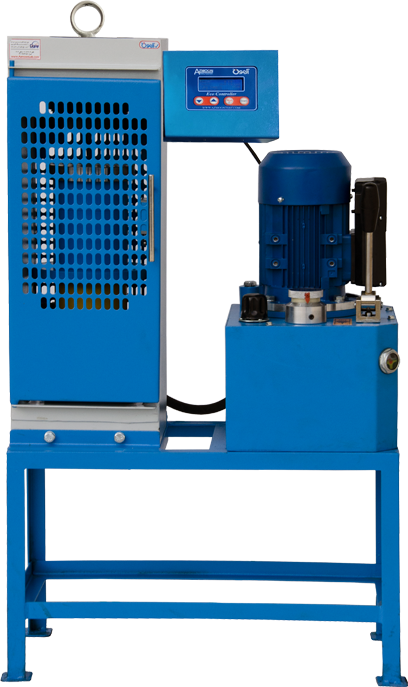

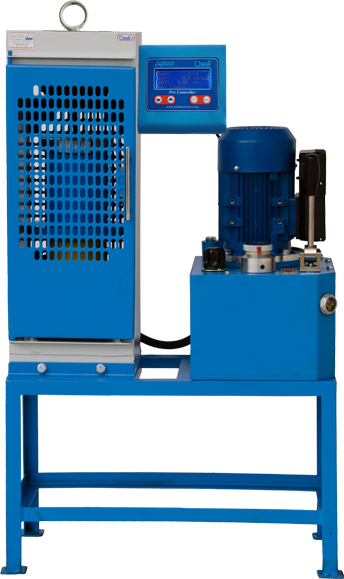

Digital Cement Compression Machine

standard: ,ASTM C109,ASTM C348,ASTM C349,EN 196-1,ISIRI 393,ISIRI 8193

Model	Description	price	Ask for qoutation
CE 260	Compression Testing machine 300kN - Digital indicator	-

Digital Cement Compression Machines are designed to perform reliable strength and flexure tests on mortar specimens. Body of this machines made of high strength rigid steel. To determine compression strength of 50x50x50 mm, 40x40x40 mm and 70x70x70 mm cubic and 100 mm diameter in 180 mm height cylindrical mortar specimen, machines equipped to a hydraulics loading system. Also machine has the ability to use for flexure tests on a 40x40x160 mm cubic specimen.

Model	CE 260
Description	Digital Indicator Cement Compression Machine
Power Supply	0.55 kW, 220 V, 50 Hz,1 ph
Capacity	320 kN
Resolution	500 N
Distance Between Plates	250 mm
Stroke Vertical Limit	40 mm
Selectable Measuring force	kg.f, N, lb.f
Oil Tank Capacity	18 litre
Platen Dim.	160 mm
Indicator	EcoControl 20x4 pixel - by Azmoon
Communication Port	Serial Communication Port
Calibration Method	Possible with internal Software
Possibility to use with Length Transducer	-
Reporting Software	-
Dim.LxWxH	700x400x1450 mm
Weight(Approx.)	250 kg
